Electrical Earthing Equipment

• Application
• Earthing, Grounding Systems in electrical installations

• Color
• Copper Red

• Connection Type
• Direct connection or with grounding clamps

• Connector Type
• Compatible with various earthing connectors

• Dimension (L*W*H)
• Depends on roll length, Diameter: 10 mm

• Efficiency
• Excellent electrical and thermal conductivity

• Feature
• Highly conductive, corrosion-resistant, long-lasting

• Humidity %
• 100% (underground/outdoor possible)

• Insulation Material
• None (bare conductor)

• Material
• Copper Bonded Steel

• Mounting Type
• Buried/Direct to ground installation

• No Of Poles
• N/A (Conductor, not an assembly)

• Operating Temperature
• Up to 80C (typical)

• Output Type
• Conductive

• Product Type
• Copper Bonded Conductor

• Protection Level
• Other, High corrosion resistance for underground installation

• Rated Voltage
• Suitable for all standard earthing systems

• Shape
• Round

• Size
• 10 mm diameter

• Surface Finish
• Copper bonded, smooth finish

• Weight
• Varies by length (typically supplied in rolls of 25m, 50m, or as required)

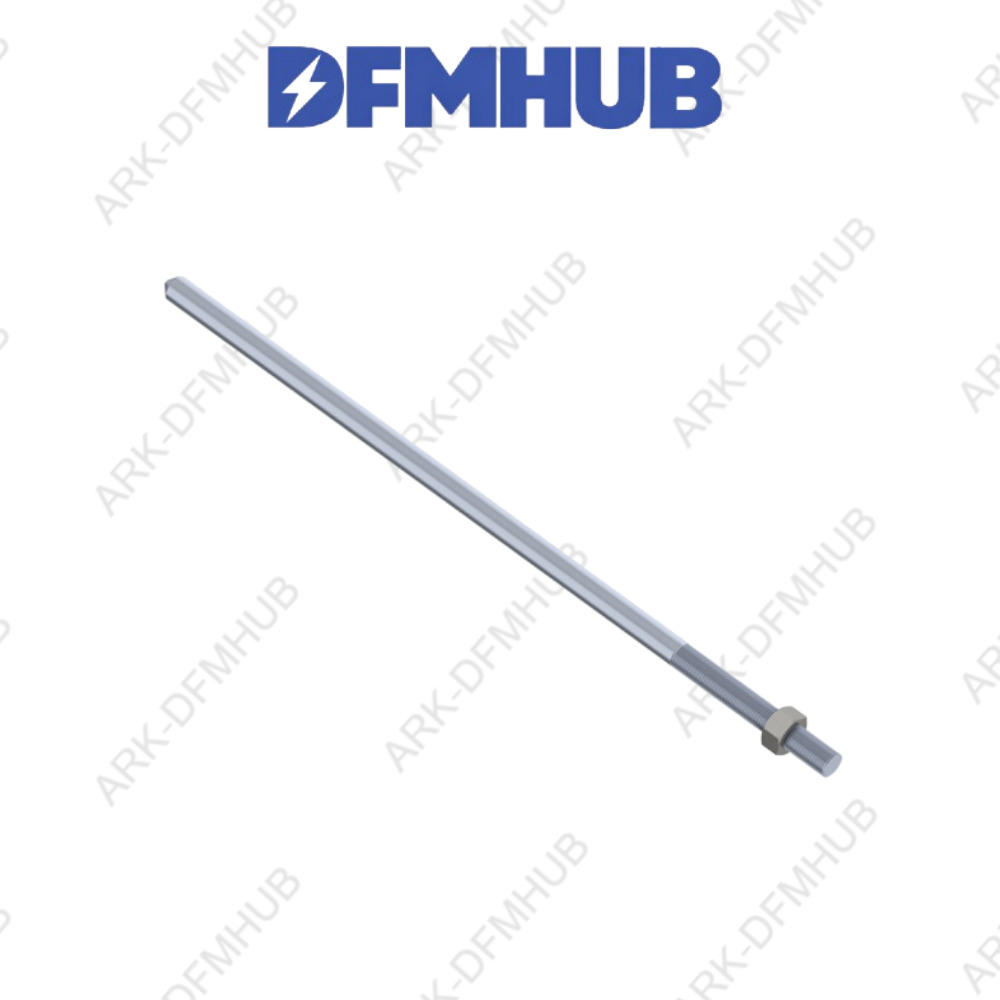

• Application
• Lightning Protection System

• Color
• Silver

• Connection Type
• Threaded Base

• Connector Type
• Threaded Coupling

• Dimension (L*W*H)
• Approx. 1000 mm x 16 mm x 16 mm

• Energy Consumption
• Zero (Passive Device)

• Feature
• Corrosion Resistant, Long Lasting

• Humidity %
• 0-95% RH

• IP Rating
• IP65

• Material
• High-Grade Stainless Steel

• Mounting Type
• Vertical (Rooftop/Pole Mounting)

• No Of Poles
• 1

• Operating Temperature
• -20C to +80C

• Phase
• Single

• Product Type
• Air Terminal Rod

• Protection Level
• Other, Standard IEC 62305

• Shape
• Rod/Cylindrical

• Size
• 1 Meter Length

• Surface Finish
• Polished

• Weight
• Approx. 1.5 kg

• Application
• Electrical power transmission & distribution

• Color
• Silver

• Connection Type
• Bare or insulated connection

• Connector Type
• Clamped/Lugged

• Dimension (L*W*H)
• Varies by spool (customized)

• Efficiency
• High

• Energy Consumption
• Depends on circuit

• Feature
• Corrosion resistant, lightweight, high conductivity

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• 0 to 95% RH

• Input Voltage
• As per load requirement

• Insulation Material
• None (bare) / optional PVC

• Material
• Aluminium

• Mounting Type
• Overhead/Underground

• Operating Temperature
• -20C to +80C

• Output Type
• Conductive

• Overheating Protection
• Other, No inherent protection; external systems required

• Phase
• Single/Three Phase (based on usage)

• Power Factor
• 1

• Product Type
• Aluminium Conductor

• Protection Level
• Other, Standard

• Rated Voltage
• Up to 1100V

• Shape
• Round

• Size
• Custom as required

• Surface Finish
• Shiny / Polished

• Weight
• Varies as per length and size selection

• Application
• Expansion gap covering, movement absorption for walls/floors

• Color
• Natural Aluminium / Silver

• Dimension (L*W*H)
• Customizable to requirement

• Feature
• Provides thermal and structural movement absorption

• Humidity %
• 0-100% RH (non-corrosive environments)

• Material
• Aluminium

• Mounting Type
• Screw or direct fixing to substrate

• Operating Temperature
• -40C to 80C (aluminium range typical)

• Product Type
• Expansion Joint / Expansion Profile

• Shape
• Wave / S-curve

• Size
• Custom sizes available

• Surface Finish
• Smooth Anodized / Mill Finish

• Application
• Earthing system, Electrical grounding

• Color
• Copper Brown

• Connection Type
• Terminal Clamp

• Connector Type
• Terminal Lug

• Dimension (L*W*H)
• Common: 14.2 mm, 17.2 mm, 25 mm dia x 1 m, 2 m, 3 m length

• Efficiency
• 98-99% Conductivity

• Energy Consumption
• N/A (Passive Device)

• Feature
• Corrosion Resistant, Long Life, Low maintenance

• Frequency (MHz)
• 50 Hz

• Humidity %
• Up to 100%

• IP Rating
• N/A (Not applicable for electrodes)

• Input Voltage
• N/A (Passive Device)

• Insulation Material
• No insulation; bare copper bonding

• Material
• Copper Bonded Steel

• Mounting Type
• Direct Earth Burial

• No Of Poles
• 1

• Operating Temperature
• -10C to +65C

• Output Type
• Grounding

• Phase
• Single & Three Phase Compatible

• Product Type
• Copper Bonded Earthing Electrode

• Protection Level
• Other, High electrical protection

• Rated Voltage
• 230-415V

• Shape
• Round Rod

• Size
• 14.2 mm, 17.2 mm, 25 mm Diameter, 1-3 m Length

• Surface Finish
• Copper Bonded (99.9% Purity), Shiny

• Weight
• Depends on size (common: 5-15 kg)

• Application
• Earthing and Bonding Applications

• Color
• Silver

• Connection Type
• Bolt Connection

• Connector Type
• Cross Clamp

• Dimension (L*W*H)
• Approx. 60mm x 60mm x 25mm

• Efficiency
• High Mechanical Efficiency

• Feature
• Easy Installation, Durable, Rust Proof

• Humidity %
• Up to 95% RH Non-condensing

• IP Rating
• IP40

• Insulation Material
• None (Bare Metal)

• Material
• Stainless Steel or Galvanized Iron

• Mounting Type
• Clamp/Direct Mount

• No Of Poles
• 4

• Operating Temperature
• -20C to +80C

• Output Type
• Mechanical Junction

• Overheating Protection
• Other, No (Mechanical Component)

• Phase
• Single/Three Phase Compatible

• Product Type
• Cross Connector Clamp

• Protection Level
• Other, Corrosion Resistant

• Rated Voltage
• Suitable up to 1000V (depends on installation)

• Shape
• Cross

• Size
• 8mm (for conductor cross section/bolt size)

• Surface Finish
• Electroplated/Polished

• Weight
• Approx. 180-250 grams

• Application
• Electrical busbar joinery, power distribution, industrial electrical installation

• Color
• Silver

• Connection Type
• Bolted

• Connector Type
• Strips Cross Connector

• Dimension (L*W*H)
• Standard: 60mm x 60mm x 15mm (custom sizes available)

• Efficiency
• 99% mechanical connection efficiency

• Feature
• High strength, easy installation, reusable

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• 0-95% non-condensing

• IP Rating
• IP20 (for indoor use)

• Input Voltage
• 110-690 V max.

• Insulation Material
• No insulation (Metallic body)

• Material
• Stainless Steel / Aluminum Alloy

• Mounting Type
• Panel/Bars Mounting

• No Of Poles
• 4

• Operating Temperature
• -40C to +120C

• Output Type
• Mechanical Connection

• Overheating Protection
• Other, Yes (via material selection)

• Phase
• Single/Three Phase (for busbar systems)

• Product Type
• Cross Connector for Strips

• Protection Level
• Other, Corrosion Resistant

• Rated Voltage
• 110-690 V

• Shape
• Cross

• Size
• For strip width 25-50 mm (customizable)

• Surface Finish
• Galvanized/Polished

• Weight
• Approx. 80-120 grams (depending on size)

• Application
• Earthing and electrical installations, supporting rods at cross-sections

• Color
• Silver/Grey

• Connection Type
• Mechanical Clamp

• Connector Type
• Bolt Clamp

• Dimension (L*W*H)
• Dependent on rod size, typically 90mm 90mm 20mm

• Feature
• Robust, Easy installation, Durable

• Humidity %
• Up to 95% relative humidity

• Material
• Galvanized Iron / Mild Steel

• Mounting Type
• Bolt-On

• Operating Temperature
• Up to 60C

• Product Type
• Diagonal Clamp

• Protection Level
• Other, Corrosion Resistant

• Shape
• Diagonal X-shape

• Size
• For 10mm rods (custom sizes available)

• Surface Finish
• Hot Dip Galvanized

• Weight
• Approx. 150-250 g

• Application
• Holding/Routing Down Conductor (Lightning Protection System)

• Color
• Silver

• Connection Type
• Bolt Fixing

• Connector Type
• Rod Clamp

• Dimension (L*W*H)
• Approx. 60 mm x 40 mm x 45 mm

• Feature
• Heavy Duty, Weatherproof, Easy Installation

• Humidity %
• Up to 95% RH

• Material
• Galvanized Iron / Stainless Steel

• Mounting Type
• Clamp Mount

• No Of Poles
• Single

• Operating Temperature
• -20C to +80C

• Product Type
• Down Conductor Holder Clamp For Rod

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular Base With Round Rod Clamp

• Size
• For 8 mm to 10 mm Rod

• Surface Finish
• Hot Dip Galvanized / Polished

• Weight
• Approx. 120 g

• Application
• Electrical Earthing Distribution

• Color
• Silver (Bar), Black (Base), Red (Insulators)

• Connection Type
• Bolt Connection

• Connector Type
• Stud Type Terminal

• Dimension (L*W*H)
• 230 mm x 50 mm x 70 mm (Approx.)

• Efficiency
• N/A (Passive Device)

• Energy Consumption
• N/A (Passive Component)

• Feature
• Corrosion Resistant, Durable, High Conductivity

• Frequency (MHz)
• 50-60 Hz

• Humidity %
• 95% RH (Non-condensing)

• IP Rating
• N/A (Depends on enclosure)

• Input Voltage
• N/A (For Earthing Use)

• Insulation Material
• Polypropylene (for Stand-Off Insulator)

• Material
• Electrolytic Copper Bar, Steel Channel, Insulated Mounts

• Mounting Type
• Surface / Base Mounted

• No Of Poles
• 8 Poles

• Operating Temperature
• -10C to +70C

• Output Type
• Mechanical Connection Points

• Overheating Protection
• NO

• Phase
• Single Phase / Three Phase (Compatible)

• Product Type
• Earth Bar

• Protection Level
• Other, Standard

• Rated Voltage
• Up to 690V

• Shape
• Rectangular Bar

• Size
• 8 Way / 8 Terminal

• Surface Finish
• Tinned or Nickel Plated (Bar Surface)

• Weight
• Approx. 0.6 kg

• Application
• Earthing, Electrical Connections

• Color
• Silver

• Connection Type
• Fixed Terminal Connection

• Connector Type
• Terminal Pin

• Feature
• Corrosion Resistant, Durable

• Insulation Material
• None (All Metal)

• Material
• Metal

• Mounting Type
• Fixed Mounting

• Product Type
• Earth Fixed Terminal

• Shape
• Round Flat Head with Cylindrical Stem

• Surface Finish
• Polished

• Application
• Earthing/Electrical Grounding

• Color
• Metallic Silver

• Connection Type
• Mechanical Clamp

• Connector Type
• Threaded/Clamp

• Dimension (L*W*H)
• Customized / As per Design

• Feature
• High durability, Rust proof

• Material
• Stainless Steel

• Mounting Type
• Plate Mount

• No Of Poles
• 3

• Product Type
• Earth Stud

• Protection Level
• Other, Corrosion Resistant

• Shape
• Round Rod + Base Plate

• Size
• Standard/Custom

• Surface Finish
• Polished

• Application
• Electrical Earthing, Panel Boards, Distribution Boards

• Color
• Copper Finish

• Connection Type
• Stud and Tail

• Connector Type
• Copper Tail

• Dimension (L*W*H)
• Approx. 70mm x 40mm x 50mm

• Efficiency
• High Electrical Conductivity

• Feature
• High Conductivity, Corrosion Resistant, Durable

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Up to 95% RH Non-Condensing

• IP Rating
• IP20 (When Used in Enclosed Panel)

• Input Voltage
• Up to 415V AC/DC

• Insulation Material
• None (Bare Copper)

• Material
• Copper

• Mounting Type
• Panel Mount

• No Of Poles
• 3

• Operating Temperature
• -20C to +85C

• Output Type
• Copper Tail Connection

• Overheating Protection
• Other, No (Dependent on System Protection)

• Phase
• Three Phase or Single Phase (Universal)

• Product Type
• Earth Stud With Copper Tail

• Protection Level
• Other, Standard Earthing Protection

• Rated Voltage
• Up to 415V

• Shape
• Rectangular Base with Cylindrical Studs

• Size
• Standard/Custom as per Requirement

• Surface Finish
• Tinned Copper or Natural Copper

• Weight
• Approx. 150g

• Application
• Earthing/ Grounding for Electrical Installations

• Color
• Copper Red/Brown

• Connection Type
• Terminal Clamp / Mechanical Connector

• Connector Type
• Bolt/Clamp

• Dimension (L*W*H)
• Typically 16mm/25mm Diameter, Length 1 - 3 meters

• Efficiency
• High grounding efficiency

• Feature
• High Conductivity, Corrosion Resistance

• Frequency (MHz)
• 50-60

• Humidity %
• Up to 95% RH

• IP Rating
• IP 65

• Input Voltage
• Up to 440 V

• Material
• Copper (Pure Copper/ Copper Bonded Steel)

• Mounting Type
• Direct Ground Mounting

• No Of Poles
• 1

• Operating Temperature
• -10C to 60C

• Output Type
• Direct Ground Connection

• Phase
• Single

• Product Type
• Earthing Rod

• Protection Level
• Other, IP 65

• Rated Voltage
• Up to 440 V

• Shape
• Cylindrical Rod

• Size
• Customizable (Standard: 16mm x 1m, 25mm x 3m, etc.)

• Surface Finish
• Polished/ Electrolytic Coated

• Weight
• Varies (Typically 3-7 kg depending on size)

• Application
• Earthing and grounding in electrical installations

• Color
• Silver/Grey

• Connection Type
• Bolted or welded connections

• Connector Type
• Lugs/bolted connections

• Dimension (L*W*H)
• Custom/As required

• Feature
• Corrosion resistant, Durable, High strength

• Humidity %
• Suitable for high humidity environments

• Insulation Material
• Bare metal, no insulation

• Material
• Galvanized Iron (GI)

• Mounting Type
• Surface mounting

• Operating Temperature
• Suitable for standard earthing environments

• Product Type
• GI Strip

• Shape
• Strip/Flat

• Size
• Available in multiple widths and thicknesses as per requirement

• Surface Finish
• Galvanized

• Weight
• Varies as per size (typically lightweight)

• Application
• Lightning Protection, Earthing Systems

• Color
• Silver

• Connection Type
• Clamp

• Connector Type
• Screw Clamp

• Dimension (L*W*H)
• 90 x 35 x 48 mm

• Feature
• Easy Installation, Weather Resistant

• Humidity %
• 95%

• IP Rating
• IP65

• Insulation Material
• No insulation (all metal)

• Material
• Stainless Steel

• Mounting Type
• Roof Mounted

• No Of Poles
• Single

• Operating Temperature
• -40C to +80C

• Phase
• Single Phase

• Product Type
• Metal Roof Conductor Clamp

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular with Clamp

• Size
• Suitable for 8-10 mm Conductor

• Surface Finish
• Galvanized / Polished

• Weight
• Approx. 120g

• Application
• Used for supporting conduits, pipes, or rods on parapet walls

• Color
• Industrial enamel blue/grey

• Connection Type
• Mechanical Clamp-Fit

• Connector Type
• Clamp

• Dimension (L*W*H)
• Approx. 75 x 60 x 140 mm

• Feature
• Heavy duty, corrosion resistant, easy installation

• Humidity %
• Upto 95% (non-condensing)

• Material
• Cast Iron / Mild Steel

• Mounting Type
• Parapet Wall Mounted

• Operating Temperature
• -10C to 80C

• Product Type
• Parapet Holder Clamp

• Shape
• Parapet Clamp with U-shaped Holder

• Size
• Standard 2 parapet fit

• Surface Finish
• Painted/Coated

• Weight
• Approx. 800-1000 g

• Application
• Securing and grounding rebar in construction, electrical earthing systems

• Color
• Silver/Metallic

• Connection Type
• Screw Clamp

• Connector Type
• Mechanical / Screw type

• Dimension (L*W*H)
• Approx. 4 x 3 x 3 cm

• Efficiency
• 100% mechanical efficiency

• Feature
• Rust Proof, Heavy Duty, Easy Installation

• Humidity %
• Up to 95% RH non-condensing

• IP Rating
• IP20 (for indoor use)

• Material
• Stainless Steel / Galvanized Iron

• Mounting Type
• Clamp-On

• Operating Temperature
• -20C to +70C

• Output Type
• Mechanical Fastening

• Product Type
• Rebar Clamp

• Protection Level
• Other, Corrosion-Resistant

• Shape
• Rectangular Clamp with Bar Slot

• Size
• Suitable for 8mm-10mm rebar

• Surface Finish
• Nickel/Chrome plated or Galvanized

• Weight
• Approx. 150-200 grams

• Application
• Earthing and Lightning Protection System

• Color
• Natural Brass/Silver Finish

• Connection Type
• Mechanical Clamp

• Connector Type
• Rod to Tape/Rod Connection

• Dimension (L*W*H)
• Custom/Standard sizes available

• Efficiency
• High Conductivity

• Feature
• Strong mechanical connection, Easy to install

• Humidity %
• Up to 95% RH (Non-condensing)

• Insulation Material
• No Insulation (Bare Metal)

• Material
• High-Grade Brass / Copper Alloy

• Mounting Type
• Clamp-On

• No Of Poles
• 2

• Operating Temperature
• -20C to +60C

• Product Type
• Rod Termination Clamp

• Protection Level
• Other, Corrosion-Resistant

• Shape
• Rod Termination Clamp (Cross-Shaped)

• Size
• Fits 17mm Rods

• Surface Finish
• Nickel Plated/Polished

• Weight
• Approx. 200-300g

• Application
• Roof Conductor Fixation for Lightning Protection

• Color
• Metallic Silver

• Connection Type
• Clamp/Holder

• Connector Type
• Bolt Clamp

• Dimension (L*W*H)
• Approx. 40 x 30 x 40 mm

• Feature
• Corrosion Resistant, High Tensile Strength

• Humidity %
• Up to 95% RH

• Insulation Material
• None (Metallic)

• Material
• Stainless Steel

• Mounting Type
• Roof/Ceiling Mount

• Operating Temperature
• -40C to +80C

• Product Type
• Roof Conductor Holder Clamp

• Shape
• U-Shape

• Size
• Standard (custom sizes available)

• Surface Finish
• Galvanized/Zinc Plated

• Weight
• Approx. 100-150 grams

• Application
• Rooftop Solar Mounting Structures

• Color
• Silver

• Connection Type
• Mechanical clamp

• Connector Type
• Clamp Type

• Dimension (L*W*H)
• 60 mm x 40 mm x 40 mm (Approx.)

• Feature
• Anti-slip design, Durable under harsh weather

• Humidity %
• 0-100% RH (Non-condensing)

• Insulation Material
• No insulation - All metal body

• Material
• High Grade Aluminum Alloy

• Mounting Type
• Standing Seam Roof

• Operating Temperature
• -40C to 85C

• Product Type
• Standing Seam Clamp

• Protection Level
• Other, Corrosion Resistant

• Shape
• Right Angle/Bracket

• Size
• Standard (custom upon request)

• Surface Finish
• Anodized

• Weight
• Approx. 250 g

• Application
• Cable Jointing, Electrical Connections

• Color
• Silver / Metallic

• Connection Type
• Bolt Type Mechanical Connection

• Connector Type
• Straight Mechanical Connector

• Feature
• Corrosion Resistant, High Conductivity

• Insulation Material
• Not Insulated

• Material
• Aluminum Alloy

• Mounting Type
• Cable Mounted

• No Of Poles
• 4

• Product Type
• Straight Connector

• Shape
• Straight / Cylindrical

• Surface Finish
• Smooth, Metallic Finish

• Application
• Used to fasten rebar or rods securely in construction and industrial installations

• Color
• Metallic (Silver/Zinc coated)

• Dimension (L*W*H)
• Customizable as per requirement

• Feature
• Strong holding capacity, rust resistant

• Humidity %
• Up to 95% non-condensing

• Material
• Galvanized Steel / Mild Steel

• Mounting Type
• Bolt-on clamp

• Operating Temperature
• Up to 100C

• Product Type
• U Bolt Rebar Clamp

• Protection Level
• Other, Corrosion resistant

• Shape
• U-Shape

• Size
• Available in multiple sizes

• Surface Finish
• Zinc plated / Galvanized

• Weight
• Depends on size (typically 100-300 grams per piece)

• Application
• Earthing and Lightning Protection System

• Color
• Silver/Metallic

• Connection Type
• Rod-to-Tape/Strip Termination

• Connector Type
• Mechanical Bolt Type

• Dimension (L*W*H)
• Approx. 100mm x 45mm x 30mm

• Efficiency
• High Mechanical Stability

• Feature
• Universal Fit, Heavy Duty Construction

• Humidity %
• Up to 95% RH

• IP Rating
• IP33 (Outdoor Use, Splash Resistant)

• Insulation Material
• None (Bare Metal)

• Material
• High-Quality Brass

• Mounting Type
• Mechanical Fixing

• No Of Poles
• Single (Universal)

• Operating Temperature
• -20C to 60C

• Output Type
• Mechanical Secure Connection

• Overheating Protection
• NO

• Phase
• Universal (Suitable for all phases)

• Product Type
• Rod Termination Clamp

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular with Central Rod Slot

• Size
• Suitable for Rods 17mm to 25mm

• Surface Finish
• Electro Tin Plated

• Weight
• Approx. 150-250 g

• Application
• Used for joining or connecting steel bars/rods in construction or electrical grounding

• Color
• Metallic grey/silver

• Connection Type
• Mechanical/Quick Connect

• Connector Type
• Mechanical bar connector

• Efficiency
• Designed for quick, reliable connections

• Feature
• Quick connection, robust, easy assembly

• Insulation Material
• None/metal body

• Material
• Metal/Alloy (likely steel or galvanized iron)

• Mounting Type
• Clamp-on mounting

• Output Type
• Mechanical connection

• Product Type
• Vario Quick Connector

• Shape
• Rectangular main body with cylindrical bar entry points

• Size
• Suitable for standard steel rods (specific rod size not listed)

• Surface Finish
• Galvanized/anti-corrosion coating

• Application
• Mounting and Securing Copper/Aluminium Strips to Wall

• Color
• Silver / Metallic

• Connection Type
• Bolt Clamp

• Connector Type
• Bolt with Nut

• Dimension (L*W*H)
• Approx. 60 mm x 20 mm x 30 mm

• Feature
• High Durability, Rustproof

• Humidity %
• 5% - 95%

• Material
• Stainless Steel

• Mounting Type
• Wall Mount

• Operating Temperature
• -20C to +80C

• Product Type
• Wall Holder Clamp for Strips

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular with Clamp

• Size
• Standard (Customizable as per strip size)

• Surface Finish
• Polished

• Weight
• Approx. 50-80 g
